Chemical Vapor Deposition

by 도른자(spinor) 2023. 5. 4.
728x90
Types of CVD Properties Advantages Disadvantages

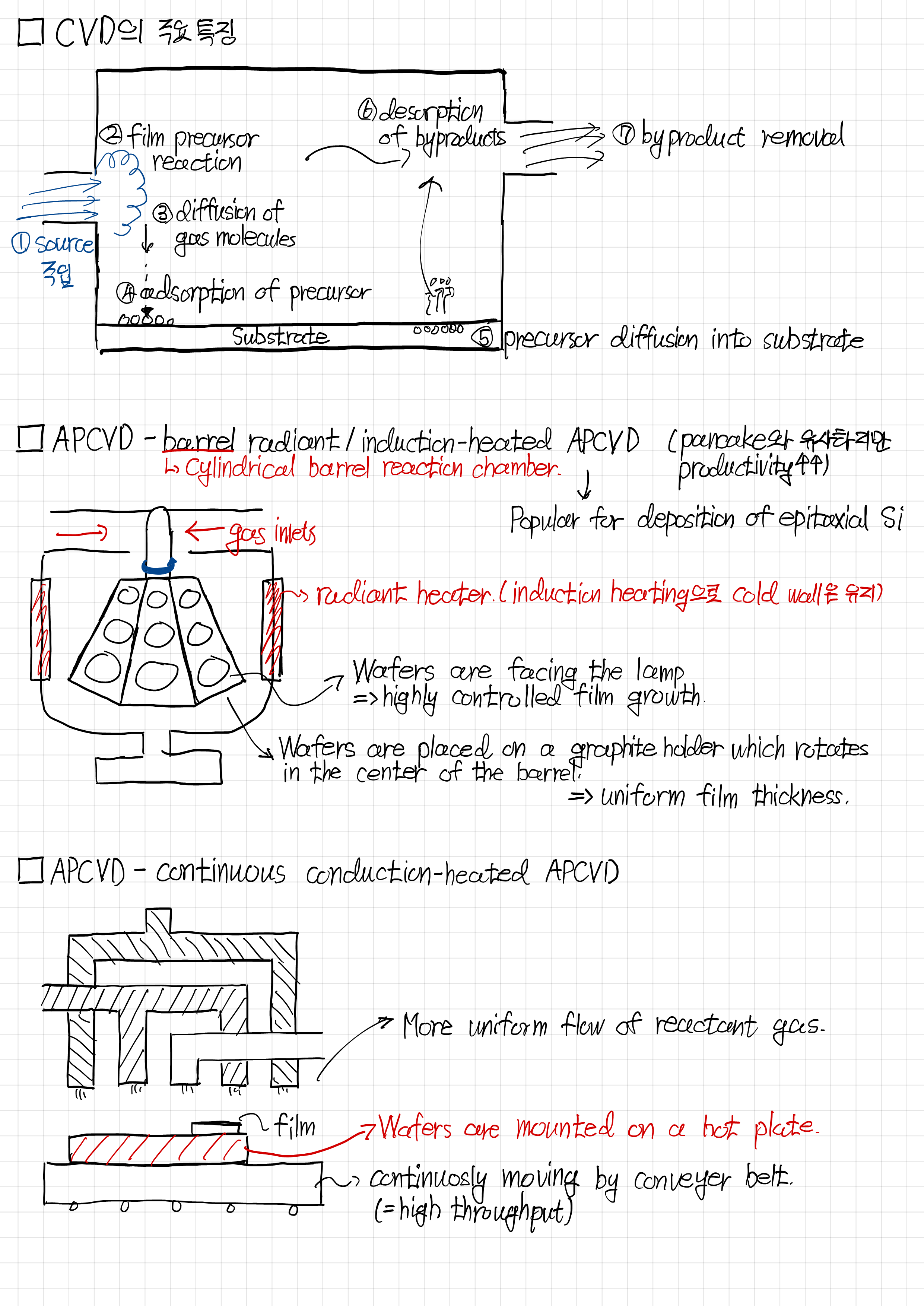

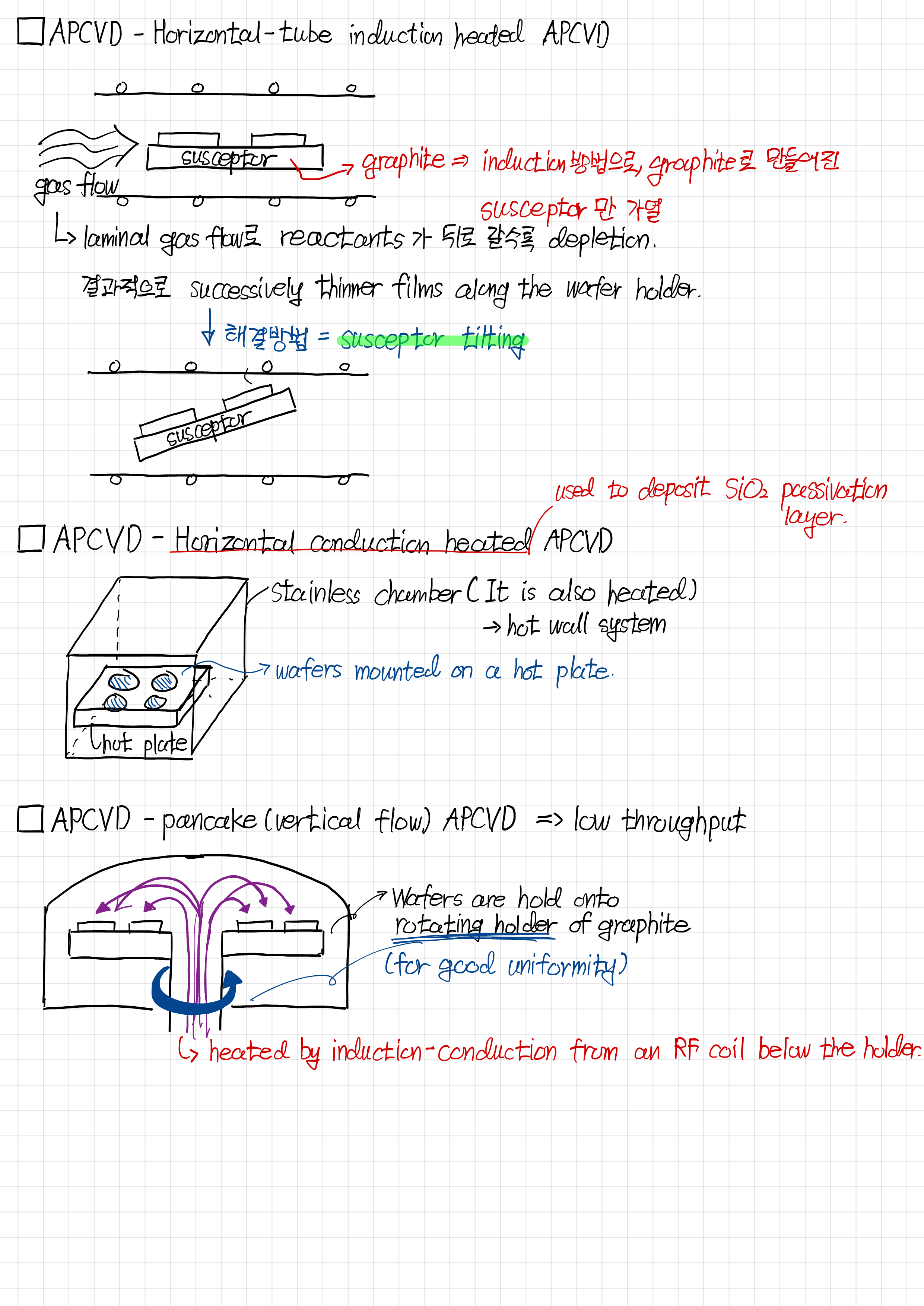

APCVD - 76~760 Torr
- Chemical raction by thermal energy
- Used in SiO2 deposition
- Coldwall Reactor
- Low temperature
- Simple reactor
- Fast Deposition Rate (70nm/min)
- Poor step coverage
- 다량의 Carrier gas waste
- Particle Contamination
- Low throughput (cause of wafer loading)
- Frequent Cleaning Required
LPCVD - Low pressure (0.25~2Torr)
- 10~50nm/min
- SiO2, Poly Si, W, Si3N4 Deposition
- Hot-wall reactor (for prcise control)
- Low gas pressure (no carrier gas)
- Large wafer capacity
- High Uniformity
- Good Step Coverage
- Low cost (because of batch process)
- Sensitive Rate Control (sensitive to temperature)
- High Temperature (500~1200C)
PECVD - Energy supplied by plasma
- Low temperature (300~400C)
- Nitride passivation layer deposition(고온공정 불가능한 경우 사용)
- High deposition rate (than LPCVD)
- Low pinhole density (good film density)
- Good Step Coverage
- Particle&Chemical Contamination
- Low Uniformity
- 조성비가 좋지 않음
MOCVD - Metal-organic precursor 사용
- decomposition at low temperature
- compound semiconductor의 경우 MOCVD 사용
- Growth Rate Control
- Good Step Coverage
- Low defects
-Toxic, Explosive Gas
CVD vs PVD CVD is the process that deposits film through chemical reaction and surface adsorption without changing the substrate properties - Higher growth rate possible
- Can deposit materials hard to evaporate (poly Si, SiO2, Si3N4, ....)
- can grow epitaxial film
- more conformal step coverage + uniformity
- Higher temperature
- Complex process
- Toxic, Corrosive Has
